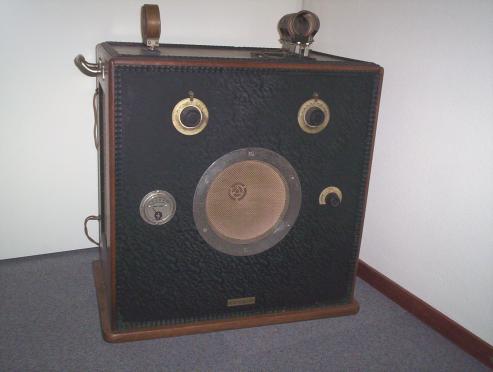

Dynaco Type A

Type: A
Serial number: ?
Built: 1928
Valves: A425 , B438 , B438 , RE134 , RGN1503 , 451 , 452

Deze radio is gebouwd in Dordrecht.
Er zijn waarschijnlijk maar enkele exemplaren gemaakt.
Deze radio weegt 45 kilogram.

This radio is built in Dordrecht the Netherlands.
Probably there are only a few radios built.
It's weight is 45 kilogram.

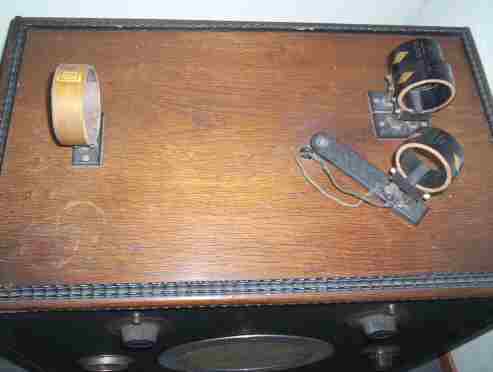

Bovenzijde van de radio met de vier honingraatspoelen.
Links de primaire spoel A.
Rechts van beneden naar boven:
De koppelspoel B,
De secundaire spoel C,
De terugkoppelspoel D.

Top side of the radio with four honecomb coils.
At the left the primary coil A.
At the right from the bottom to the top:
the coupling coil B,
the secundary coil C,
and the feedback coil D.

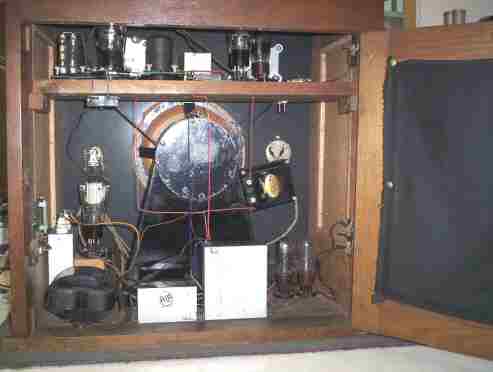

Achterkant van de radio.
Bovenin het radio chassis.
Links onder het PSA.
Rechts onder de accu lader.

Back side of the radio.
At the top the chassis.
Down left the PSU.
Dowm right the battery charger.

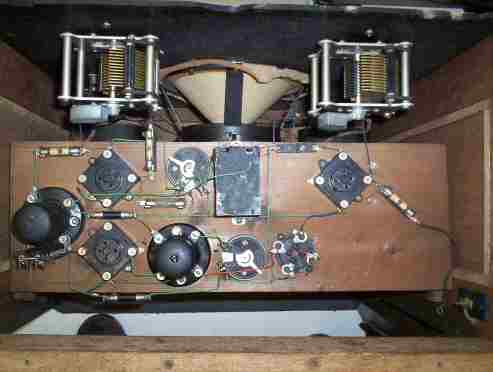

Het radio chassis van boven gezien.

The radio chassis seen from the top

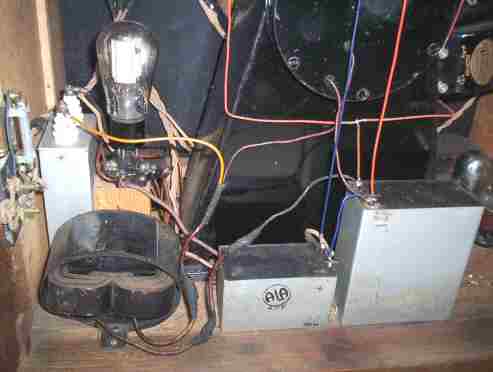

Het ingebouwde PSA voor de
anodespanning en de negatieve
roosterspanning.
In het zwarte blikken omhulsel
onder de luidspreker bevind
zich de voedingstrafo.

The built in PSU supplying the
plate and grid voltage.
Inside the black sheath contains
the mains transformer

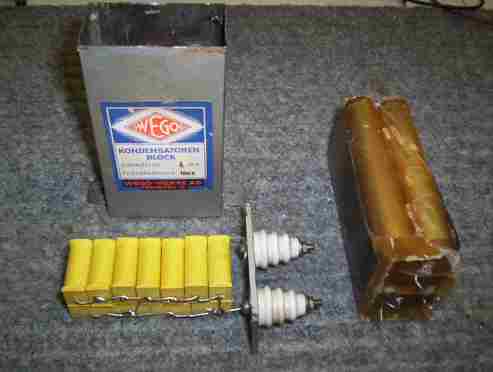

Een van de afvlak condensatoren
Deze is voorzien van nieuwe inhoud.
De oude inhoud ligt ernaast.

One of the power cappacitors.
Refilled with new cappacitors.
Right the old content.

De ingebouwde accu lader
voor de externe gloeistroom accu.

The built in battery charger
for the external fillament battery.

De bijbehorende set
Sinus honingraatspoelen.

The corresponding set of
Sinus honeycomb coils.
